0362B40-01 40W Portable Solar Power System with LED Display USB DC Output and Bluetooth Speaker
Features
Multiple Application Scenarios
- Perfect for outdoor camping, picnics, and home emergency power outages
- Multi USB and DC ports power phones, lights, fans, and small appliances

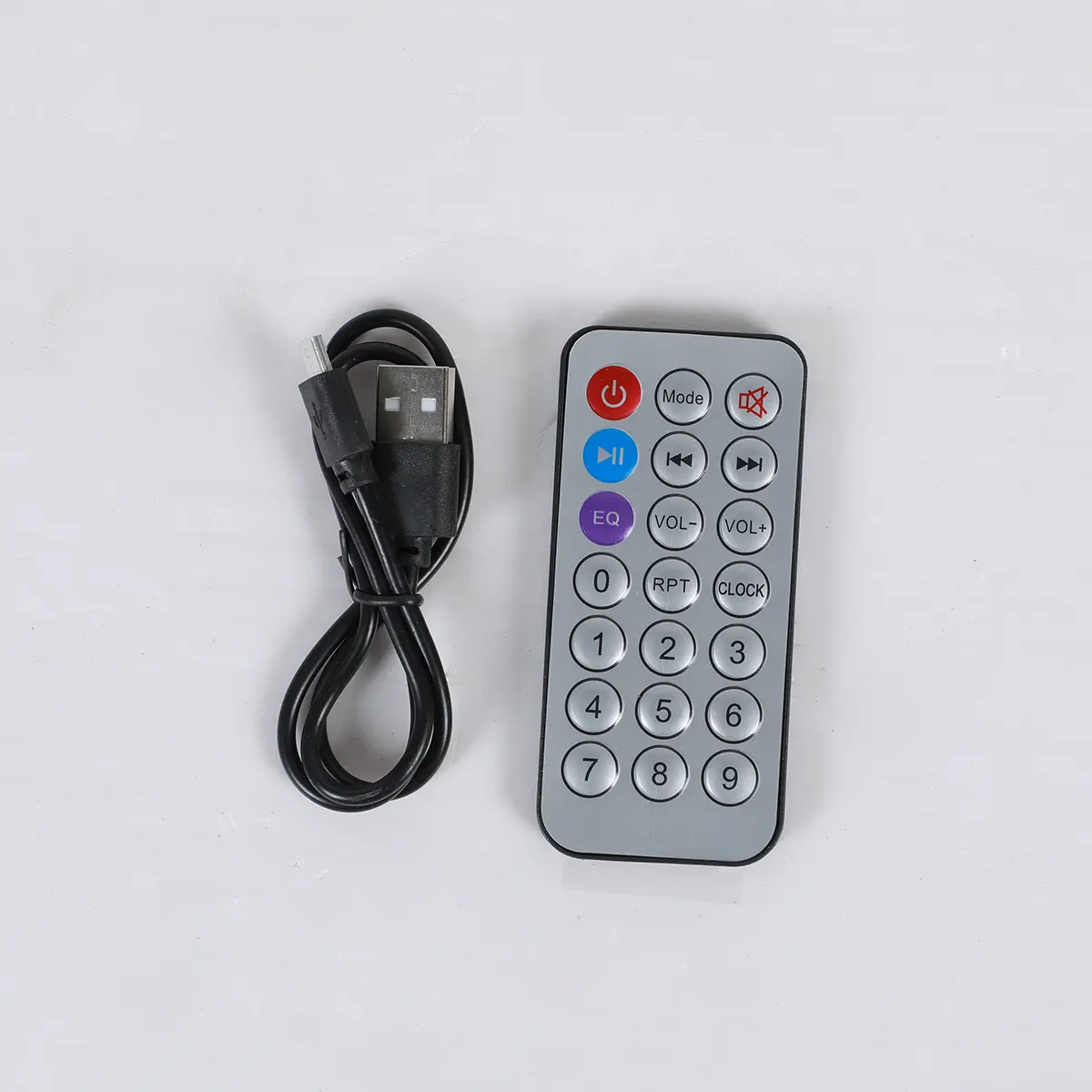

- Integrated LED bulbs, torch, Bluetooth speaker, and FM radio
Large Capacity & High Efficiency
- LiFePO4 battery ensures long life, stability, and safety
- 30W mono solar panel charges in 6–8 hrs at 20% efficiency
Safe & Durable

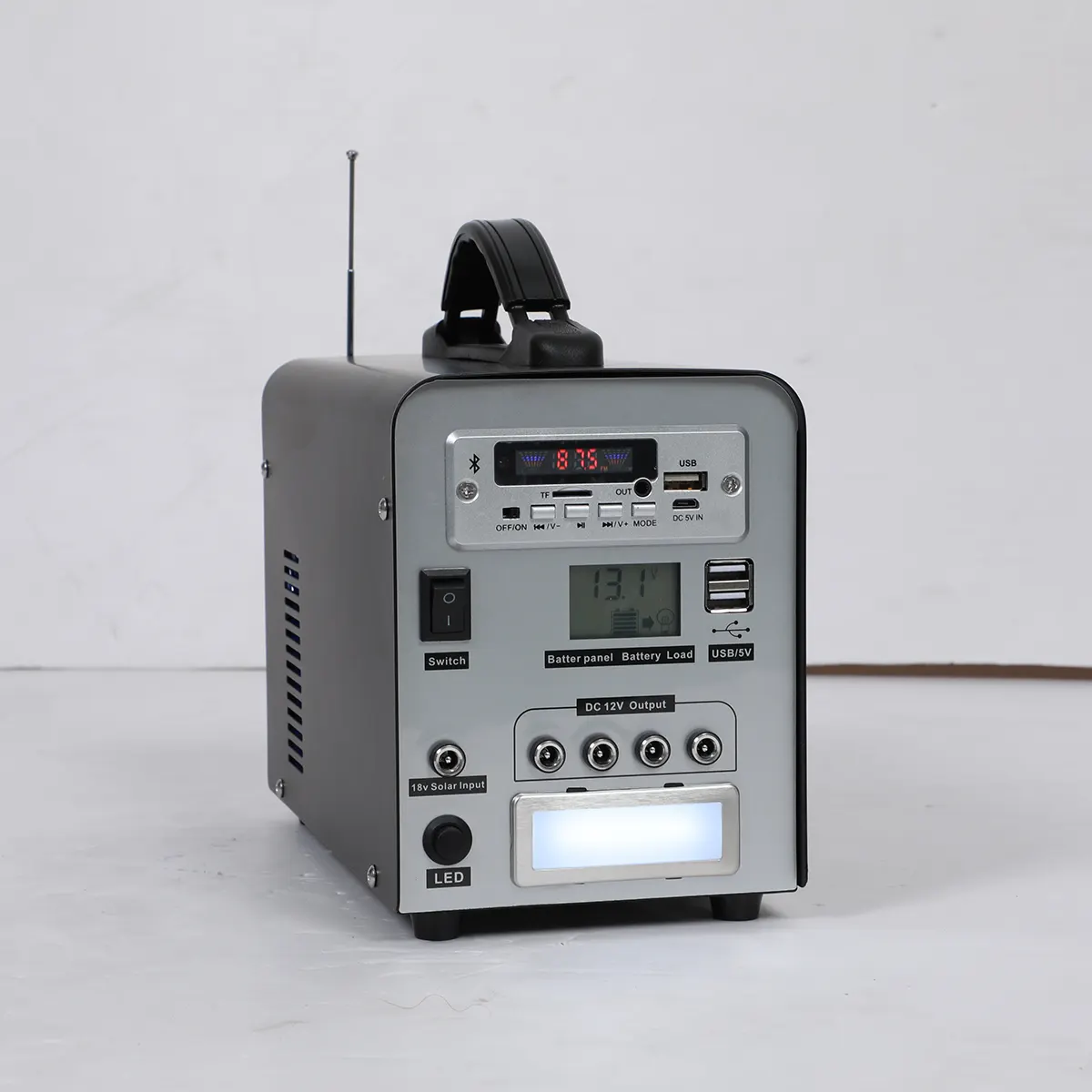

- Smart LED display shows battery and power status clearly

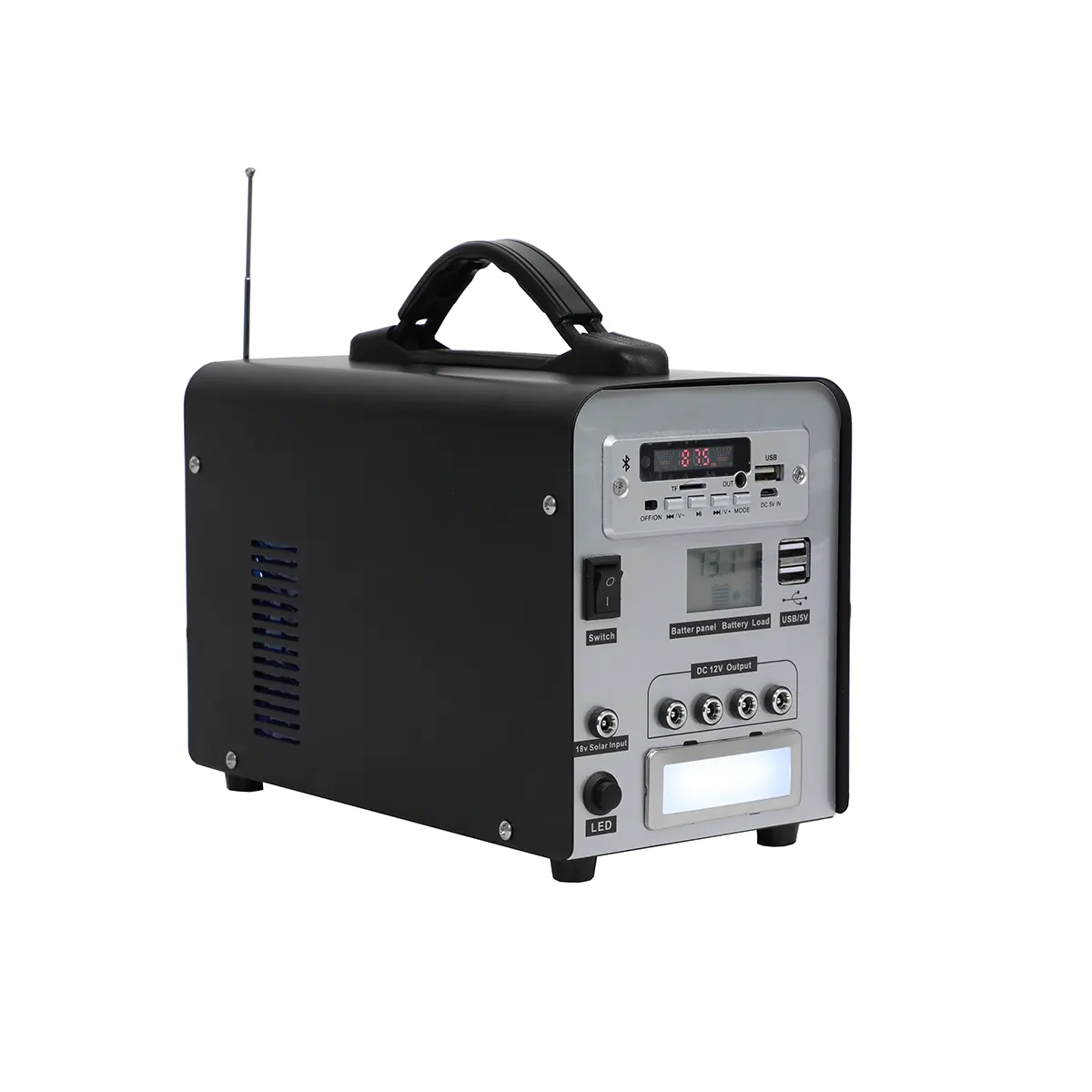

- Compact metal, PVC, and handle design
- Built-in protections: overcharge, discharge, short circuit, overcurrent, reverse polarity, overvoltage
SPECIFICATION

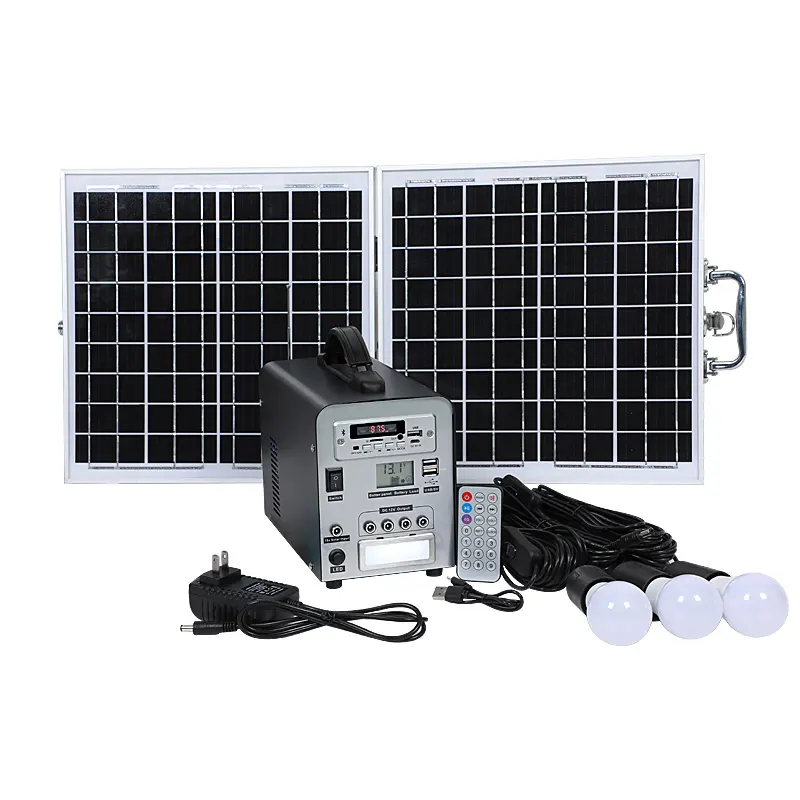

The 0362B40-01 40W Portable Solar Power System is an all-in-one off-grid energy solution designed to deliver clean, safe, and reliable electricity anytime, anywhere. Equipped with a 30W high-efficiency monocrystalline solar panel, a LiFePO4 12.8V 14Ah battery, and a multi-interface control unit, this system is ideal for off-grid homes, camping trips, disaster preparedness, and rural electrification.
| PRODUCT SPECIFICATION | |
| Model | 0362B40-01 |

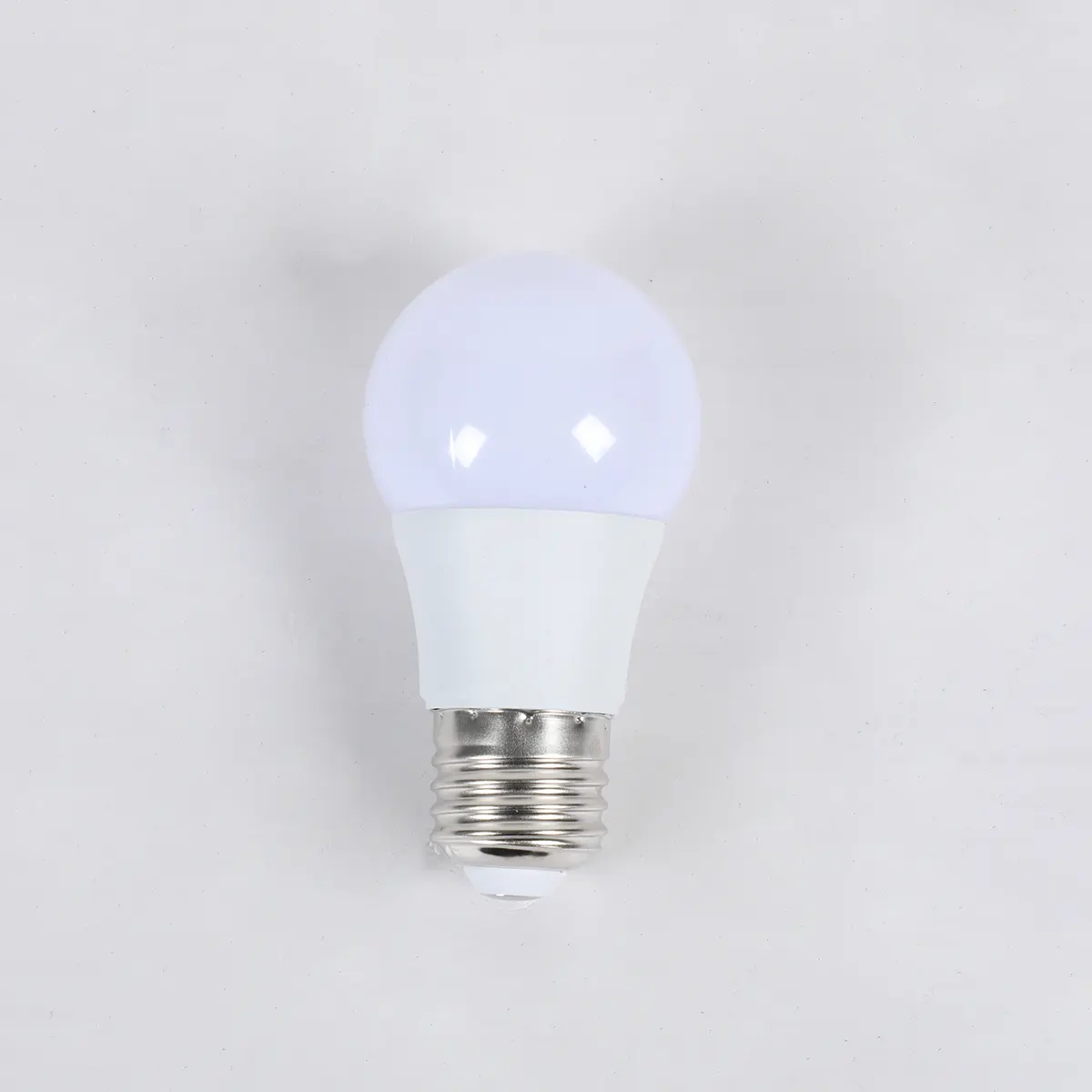

| LED Bulbs | 3W × 3 pcs |
| Torch Light | 1 pc |
| Adapter Input | AC 100-240V, 50/60Hz |
| Solar Panel Type | 18V 30W, Monocrystalline |
| Battery Type | LiFePO4 12.8V 14Ah |
| Charging Time | 6-8 Hours |
| USB Output | 5V, 2 ports |
| DC Output | 12V, 4 ports |
| Material | Metal + PVC |
| Product Size | 242 × 125 × 182mm(Main Unit) |
| Warranty | 3 Years |
| BATTERY SPECIFICATION | |
| Design Life | 6-8 years |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 14Ah |
| Self-Discharge | Approx. 3% per month at 20°C (average) |
| Operation Temperature Range | |
| Discharge | -20°C to 60°C |
| Charge | -10°C to 60°C |
| Storage | -20°C to 60°C |
| Max.Discharge Current (at 25°C / 77°F) | 100A (for 5 seconds) |
| Short Circuit Current | 50A |
| Solar Panels Specifications | |
| Peak Power(Pmax) | 30W |
| Maximum Power Voltage(Vmp) | 18V |
| Maximum Power Current(Imp) | 1.67A |
| Open Circuit Voltage(Voc) | 22.13V |
| Short Circuit Current(Isc) | 1.75A |
| Power Tolerance | 0 ~ +3% |
| Pmax Temperature Coefficients(W/℃) | -0.400%/ °C |
| Voc Temperature Coefficients(V/℃) | -0.300%/ °C |
| Isc Temperature Coefficients(A/℃) | +0.060%/ °C |
| Nominal Operating Cell Temperature(NOCT) | 45 ± 2°C |
| Operating & Storage Temperature | -40 ~ +85°C |
| Standard Test Condition(STC) | 1000W/m², AM 1.5, 25 ± 2℃ |
Product detail
