DC Combiner Box for Solar Systems 4 6 8 10 In 1 Out 500VDC Up to 150A Output IP65 Rated

Model: DQ1700A4-152, DQ1700A6-152, DQ 1700B8-152, DQ1700B10-152

Number Of PV Arrays Inputs: 6
Max Single PV Array Current: 15A
Fuse Current: 20A
Wire Number Of Each PV Input: PG9
Wire Number Of Output: PG25
Working Temperature: -30℃ ~ +60℃

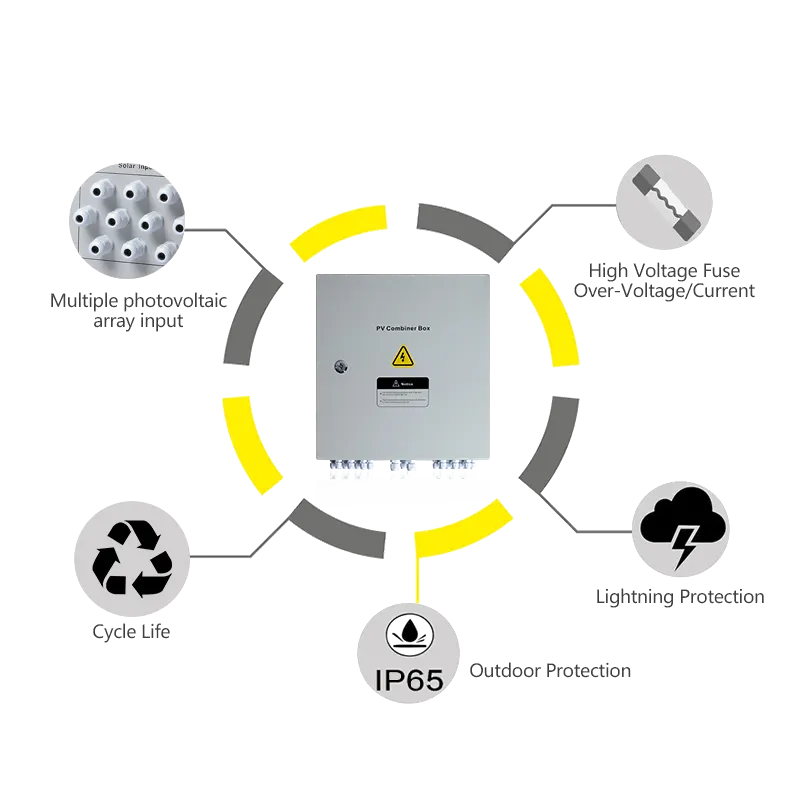

Features

Reliable

  • Surge and lightning protection with built-in 1000V SPD
  • Overcurrent and short-circuit safety with 20A fuses and anti-backflow diodes
  • Grounding protection with internal earthing wire and terminal

Durable Outdoor Design

  • IP65 Waterproof & Dustproof

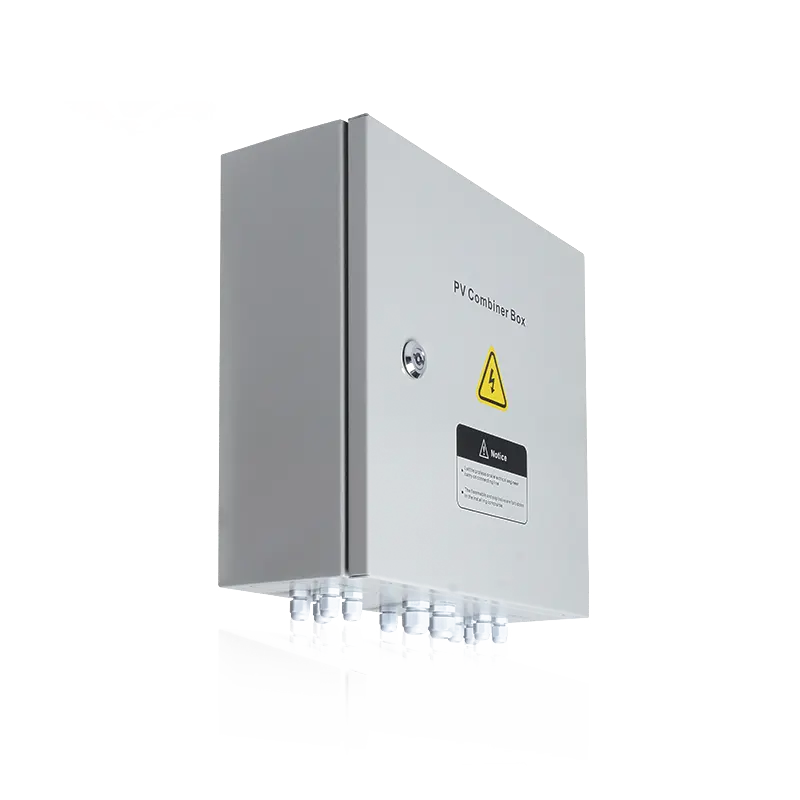

  • Cold-rolled steel enclosure with corrosion resistance and lockable door
  • Functions reliably in -30°C to +60°C temperature range.

Efficient

  • Plug-and-Play Wiring
  • 4 / 6 / 8 / 10-string input options, each up to 15A
  • Supports up to 150A output current

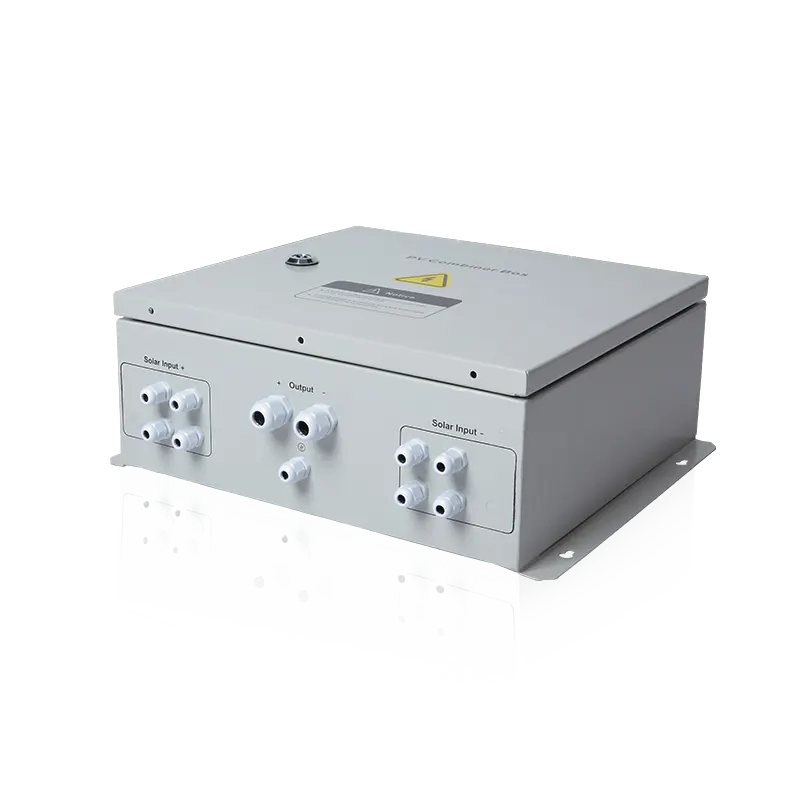

  • PG9 input & PG25 output waterproof cable glands
  • High-voltage DC breaker for safe output control

SPECIFICATION

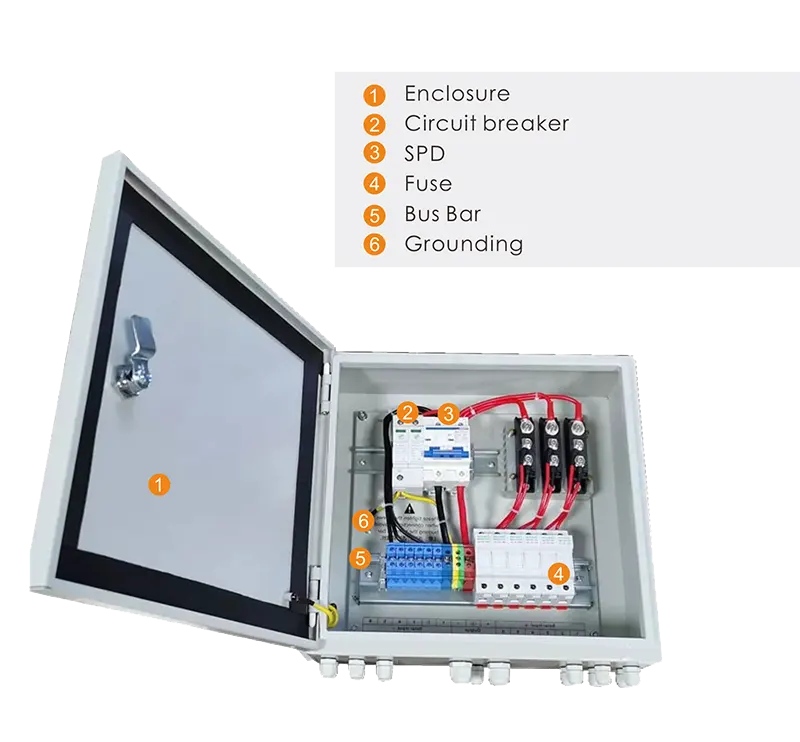

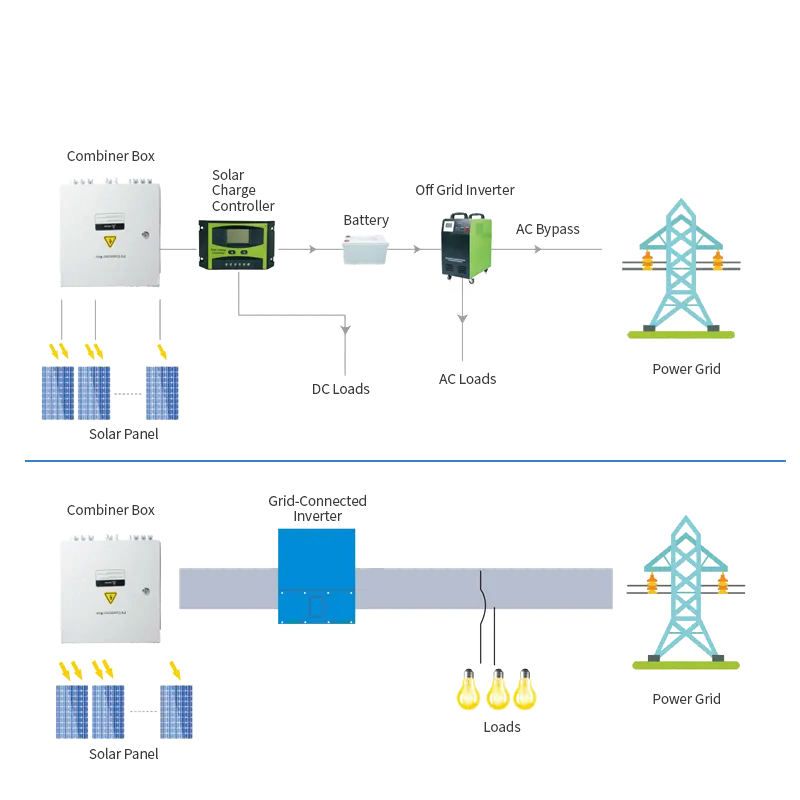

The DC Combiner Box for Solar Systems (4, 6, 8, 10 In 1 Out) supports up to 500VDC and is designed for reliable solar array protection and distribution. Each model features a maximum input current of 15A per PV string, with 20A fuse rating and maximum output currents of 60A, 90A, 120A, and 150A respectively. Built with a corrosion-resistant metal enclosure and IP65 waterproof rating, it withstands harsh environments and operates between -30℃ and +60℃. Equipped with a 1000V surge protection device (SPD), high-voltage fuses, anti-reverse diodes, and professional high-voltage breakers, the combiner box ensures comprehensive protection against short circuits, lightning strikes, overvoltage, overcurrent, and grounding faults. Its built-in earthing connector and waterproof terminals enable easy installation, making it ideal for residential and commercial solar power systems of varying scales.

Product Parameter
ModelDQ1700A4-152DQ1700A6-152DQ 1700B8-152DQ1700B10-152
Number Of PV Arrays Inputs46810
Max Single PV Array Current15A15A15A15A
Fuse Current20A20A20A20A
Wire Number Of Each PV InputPG9PG9PG9PG9
Number Of Output1111
Maximum Output Current60A90A120A150A
Wire Number Of OutputPG25PG25PG25PG25
Maximum Output Voltage500VDC500VDC500VDC500VDC
IP Rate65656565
Working Temperature-30℃ ~ +60℃-30℃ ~ +60℃-30℃ ~ +60℃-30℃ ~ +60℃
Product Dimensions440*400*180mm500*400*180mm600*460*180mm700*460*180mm
Net Weight8kg14kg16kg19kg
