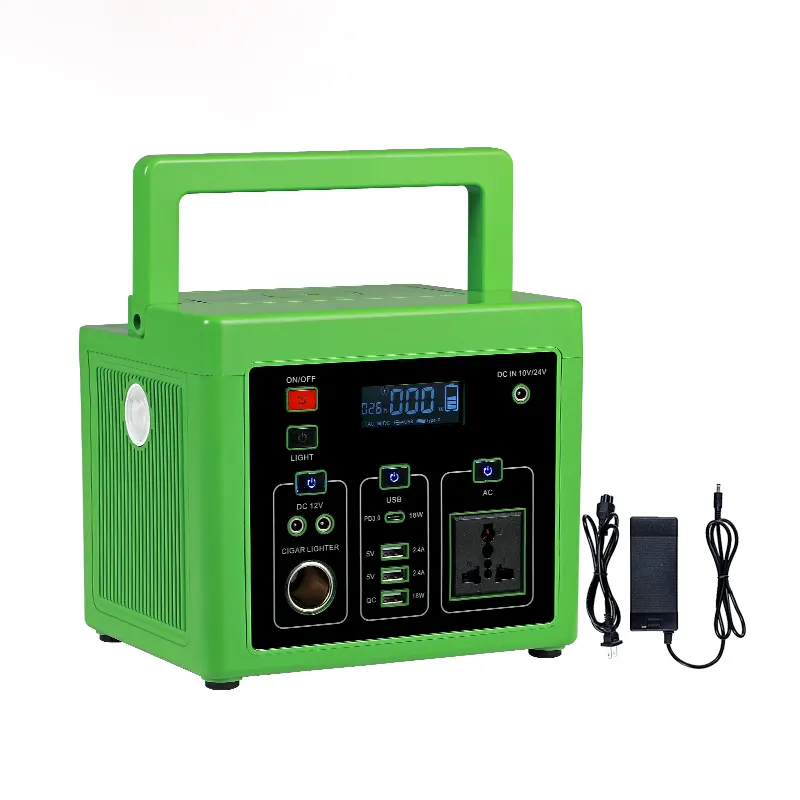

DQ0411 300W 500W Portable Solar Power System with LiFePO4 Battery and USB AC Output and Solar Panel for Home
Features
Powerful & Reliable
- Equipped with durable 12.8V LiFePO₄ battery offering up to 6–8 years lifespan
- 300W/500W Pure Sine Wave Output
- Built-in BMS ensures safe charging, overcurrent/short-circuit protection, and extended standby time.
Efficient & Off-Grid Ready
- Includespolycrystalline panels with up to 20% conversion efficiency
- Low-Light Performance & Weather Resistance
- Dual DC + USB + PD Outputs
Dual DC + USB + PD Outputs

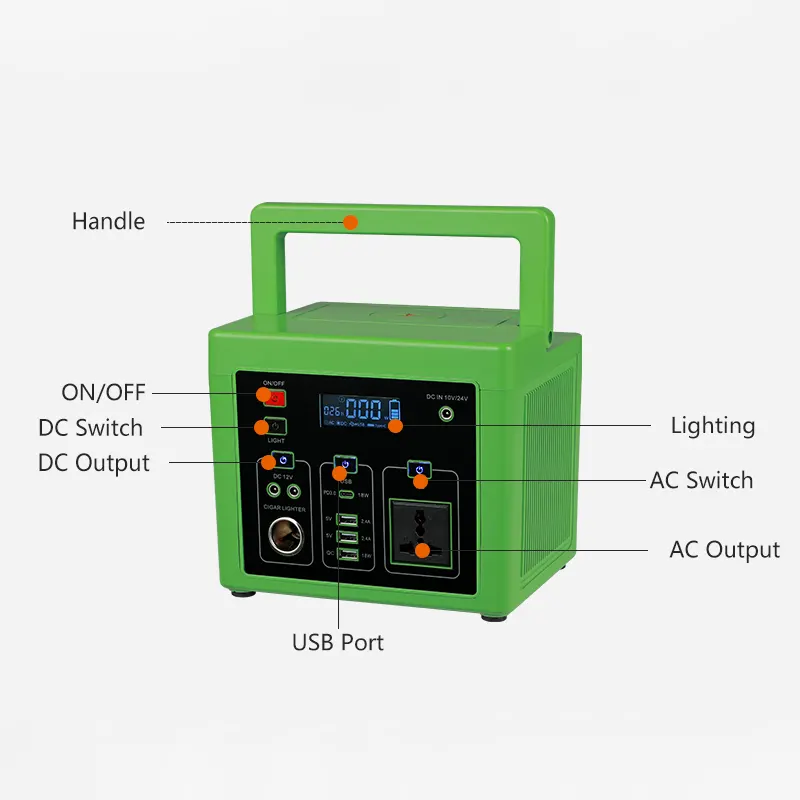

- Rugged design with built-in handle for easy transport
- Real-time LED display shows battery percentage and status, even in bright daylight
- Wireless Fast Charging

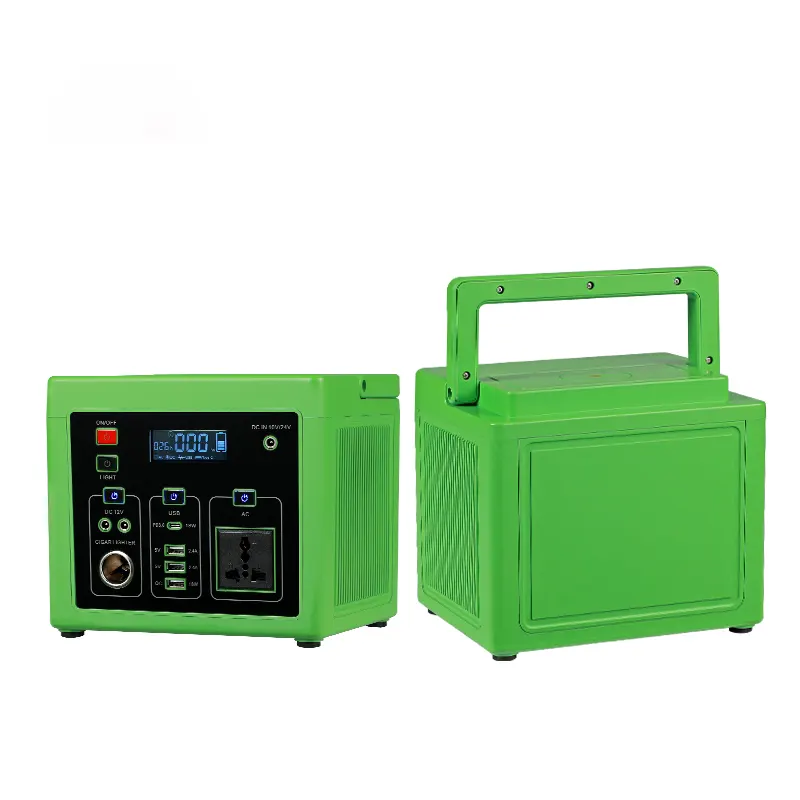

- Metal+PVC build offers durability in a space-saving design.
SPECIFICATION
The DQ1411 Portable Solar Power System (300W/500W) is a reliable off-grid energy solution designed for outdoor use, home emergencies, and essential device charging. Featuring a LiFePO₄ battery, multiple USB/DC/AC outputs, a fast-charging solar panel, and a durable metal + PVC housing, it delivers safe, stable power wherever you go.
| PRODUCT SPECIFICATION | ||
| Model | DQ1411A300-01 | DQ1411B500-01 |
| Solar Panel | 18V 60W Polycrystalline | 18V 90W Polycrystalline |
| Battery Type | LiFePO₄ 12.8V 18Ah | LiFePO₄ 12.8V 36Ah |
| Charging Time | 6-8 Hours | 6-8 Hours |
| AC Input | 10V / 24V × 1 port | 10V / 24V × 1 port |
| DC Output | 12V / 5A × 2 ports | 12V / 5A × 2 ports |
| Car Cigarette Lighter Port | 12V / 5A × 1 port | 12V / 5A × 1 port |
| AC Output | 12W × 2 ports + 18W × 1 port | 12W × 2 ports + 18W × 1 port |
| PD 3.0 Output | 18W × 1 port | 18W × 1 port |
| Material | Metal + PVC | Metal + PVC |
| Product Size | 219 × 173 × 186mm | 241 × 216 × 186mm |
| Warranty | 3 Years | 3 Years |
| BATTERY SPECIFICATION | |
| Design Life | 6-8 years |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 18Ah, 36Ah |
| Self-Discharge | Approx. 3% per month at 20°C (average) |
| Operation Temperature Range | |
| Discharge | -20°C to 60°C |
| Charge | -10°C to 60°C |
| Storage | -20°C to 60°C |
| Max.Discharge Current (at 25°C / 77°F) | 1200A (for 5 seconds) |
| Short Circuit Current | 3000A |
| Solar Panels Specifications | |
| Peak Power(Pmax) | 60W 90W |
| Maximum Power Voltage(Vmp) | 18V |
| Maximum Power Current(Imp) | 3.33A/ 5A |
| Open Circuit Voltage(Voc) | 22.61V / 23.25V |
| Short Circuit Current(Isc) | 3.5A 5.17A |
| Cells Efficiency(%) | 18.37% / 18.85% |
| Module Efficiency | 17.21% |
| Power Tolerance | 0 ~ +3% |
| Pmax Temperature Coefficients(W/℃) | -0.400%/ °C |
| Voc Temperature Coefficients(V/℃) | -0.300%/ °C |
| Isc Temperature Coefficients(A/℃) | +0.060%/ °C |
| Nominal Operating Cell Temperature(NOCT) | 45 ± 2°C |
| Operating & Storage Temperature | -40 ~ +85°C |
| Standard Test Condition(STC) | 1000W/m², AM 1.5, 25 ± 2℃ |
Product detail
