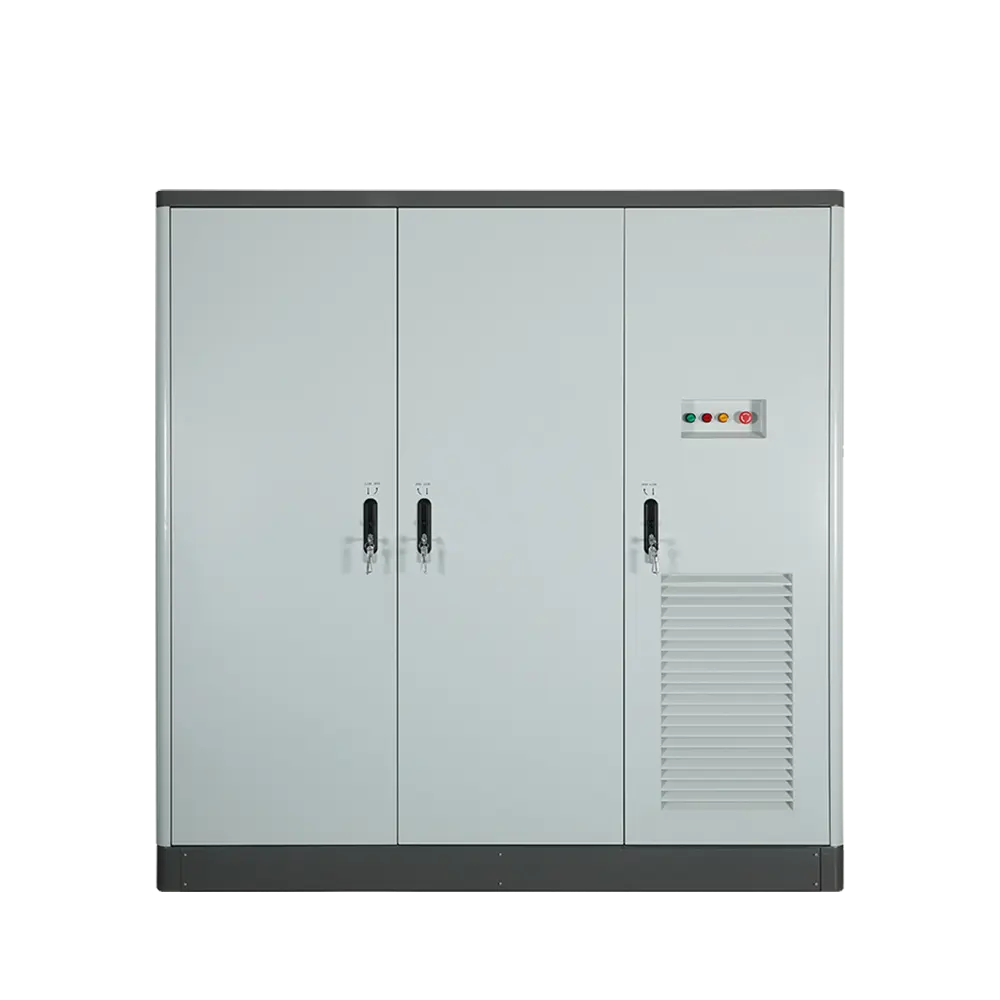

DQ1907D105K-01 241kWh Outdoor ESS Cabinet with 105kW PCS 100kW Solar Charger LiFePO4 Battery Storage System

DQ1907D105K-01 241kWh Outdoor ESS Cabinet with 105kW PCS
Home / Products / DQ1907D105K-01 241kWh Outdoor ESS Cabinet with 105kW PCS 100kW Solar Charger LiFePO4 Battery Storage System

Features

High-Capacity & Reliable

  • 241kWh LiFePO₄ battery system with expandable capacity
  • 768V system voltage
  • Wide voltage range (672–864V)

Efficient & Flexible

  • 105kW PCS — Fast and stable AC/DC conversion.
  • Wide MPPT range (0–900V)
  • 30–50s grid/off-grid switching

Smart & Secure Cabinet Design

  • Real-time control via LCD, RS485, CAN, and TCP/IP.
  • Outdoor 3-cabin structure
  • Dual AC + fire system

SPECIFICATION

This 241kWh outdoor ESS cabinet features LiFePO₄ batteries (768V, 314Ah), a 105kW PCS, and 100kW solar charging system with MPPT — all housed in a 3-cabin design with air conditioning and fire protection. Ideal for industrial, commercial, and off-grid solar+storage applications with real-time EMS monitoring and flexible grid/off-grid operation.

System Parameter
ModelDQ1907D105K-01
LiFePO4 Battery768V/314Ah
Battery Voltage Range672~864V
Rated Power105KW
Rated AC Voltage230/400V, 50/60Hz
AC Voltage Range230/400V, 50/60Hz
DC Voltage Range615~950V
Max. PV Charge Power100kW
Max. PV Input Voltage900V
MPPT Voltage Range0~900V
Display InterfaceLCD monitor
Communication InterfacesRS485, CAN, Ethernet
EMS ProtocolsModbus-RTU / CAN / TCP-IP
Grid-Tied / Off-Grid Switching Time30–50 seconds (power off during transition)
Cabinet TypeOutdoor Three-cabin Cabinet
Size2100*1150*2150mm
Air Conditioner TypeIndustrial Cabinet A/C
Cooling Capacity1500W × 2 units
Cooling MethodActive air conditioning
Number of Units2 sets
Fire Suppression SystemBuilt-in
DQ1907D105K-01 241kWh Outdoor ESS Cabinet with 105kW PCS 100kW Solar Charger LiFePO4 Battery Storage System
