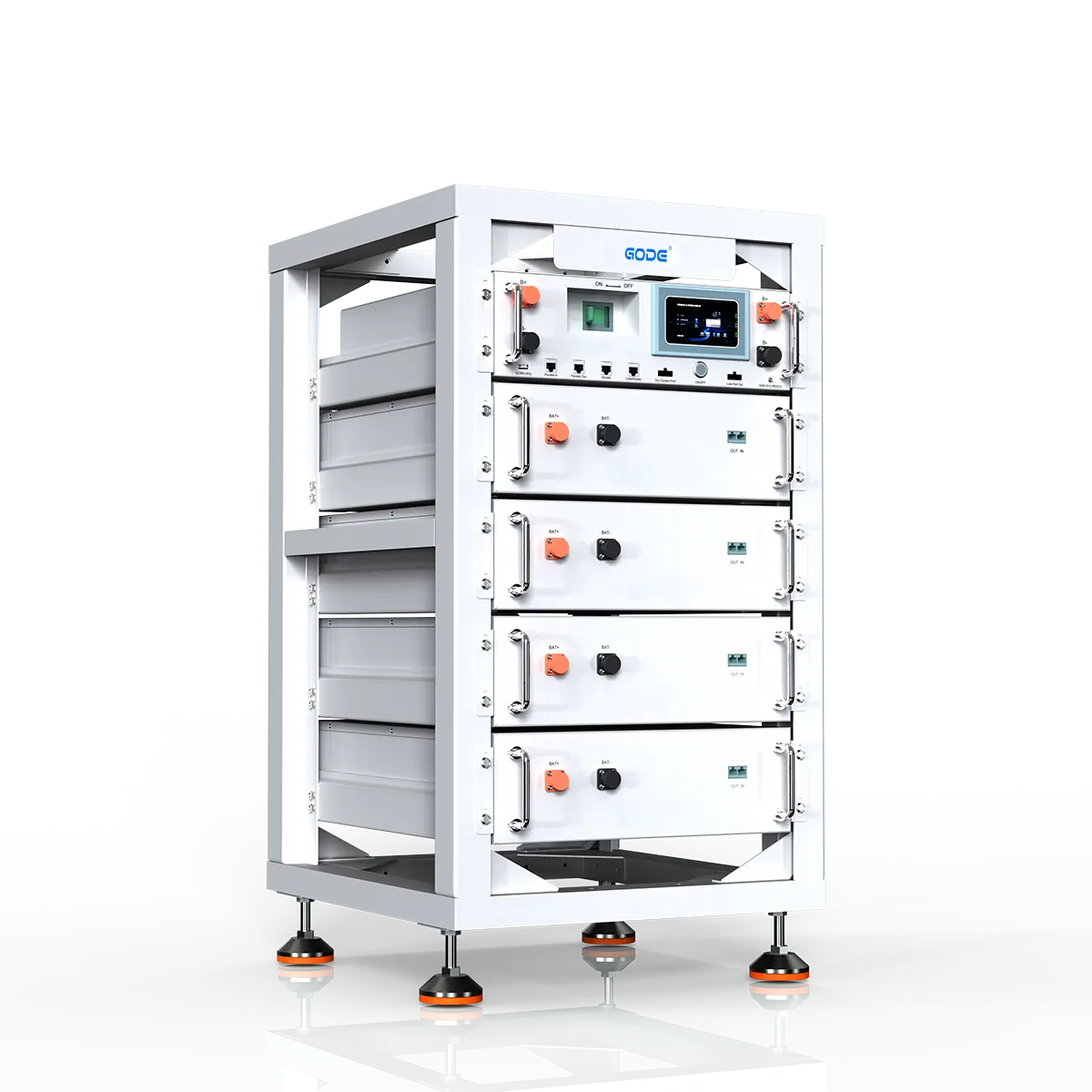

DQ2910A20-01 204.8V Modular Rack-Mounted LiFePO4 Battery ESS for Commercial and Industrial Use

Home / Products / DQ2910A20-01 204.8V Modular Rack-Mounted LiFePO4 Battery ESS for Commercial and Industrial Use

Features

Scalable & Flexible

  • Flexible expansion capacity up to 76.8 kWh
  • Standard 3U rack-mounted design
  • Supports series and parallel connection
  • Supports USB, WiFi, and remote upgrades
  • Nominal Voltage 204.8V

Reliable & Safe

  • Utilizes LiFePO₄ cells
  • DOD ≥ 95%
  • Built in BMS
  • Ultra-low self-discharge
  • supports 200-1000V DC operating voltage

Smart & User-Friendly

  • Seamlessly integrates with EMS
  • Supports RS485 and CAN communication interfaces
  • Includes standard cables for plug-and-play use

SPECIFICATION

The DQ2910A20-01 is a high-voltage 20.48kWh LiFePO₄ battery module designed for scalable energy storage applications. Featuring 204.8V nominal voltage, intelligent BMS, and long cycle life over 6000 cycles, it’s ideal for residential and commercial solar systems requiring safe, efficient, and modular power storage.

Product Parameter
ModelDQ2910A20-01
Battery TypeLiFePO4
Nominal Voltage204.8V
Nominal Capacity100Ah
Charging Cut-off Voltage230.4V
Discharging Cut-off Voltage179.2V
Max. Cont. Charging/Discharging Current100A
Max. Instantaneous Charge/Discharge Current100A
Depth of Discharge(DOD)≥95%
Altitude≤2000m
Humidity5%~95%
Communication PortRS485/CAN
Cycle Life≥6000
Product Size610.5*549*1020mm
Weight242kg
Warranty5 years
