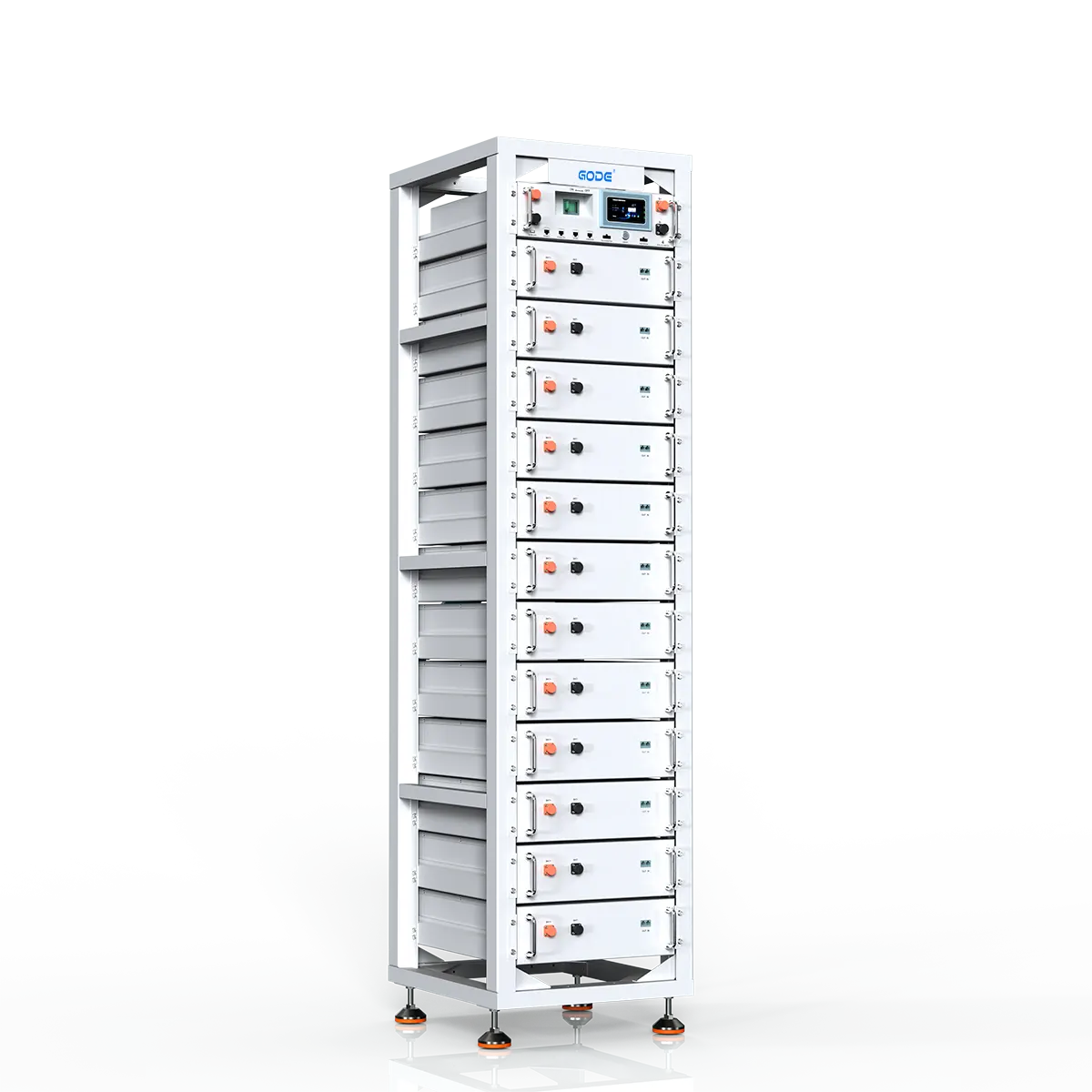

DQ2910C60-01 60kWh High Voltage LiFePO4 Battery Storage System for Industrial and Commercial Solar

DQ2910C60-01 60kWh High Voltage LiFePO4 Battery Storage System for Commercial and Industrial Solar
Home / Products / DQ2910C60-01 60kWh High Voltage LiFePO4 Battery Storage System for Industrial and Commercial Solar

Features

Scalable & Flexible

  • Flexible expansion capacity up to 76.8 kWh
  • Standard 3U rack-mounted design
  • Supports series and parallel connection
  • Supports USB, WiFi, and remote upgrades
  • Nominal Voltage 614.4V

Reliable & Safe

  • Utilizes LiFePO₄ cells
  • DOD ≥ 95%
  • Built in BMS
  • Ultra-low self-discharge
  • IP20 protection, operable at altitudes ≤ 2000m

Smart & User-Friendly

  • Seamlessly integrates with EMS
  • Supports RS485 and CAN communication interfaces
  • Includes standard cables for plug-and-play use

SPECIFICATION

The DQ2910C60-01 is a high-voltage 60kWh LiFePO₄battery module designed for scalable energy storage applications. Featuring 614.4V nominal voltage, intelligent BMS, and long cycle life over 6000 cycles, it’s ideal for residential and commercial solar systems requiring safe, efficient, and modular power storage.

Product Parameter
ModelDQ2910C60-01
Battery TypeLiFePO4
Nominal Voltage614.4V
Nominal Capacity100Ah
Charging Cut-off Voltage691.2V
Discharging Cut-off Voltage537.6V
Max. Cont. Charging/Discharging Current100A
Max. Instantaneous Charge/Discharge Current100A
Depth of Discharge(DOD)≥95%
Altitude≤2000m
Humidity5%~95%
Communication PortRS485/CAN
Cycle Life≥6000
Product Size610.5*549*2188mm
Weight644kg
Warranty5 years
