Gode Vision

Model 0310 160lm/W 40W 60W 100W All In One Solar Street Light with 5050 LED Chips

Model:

Working Time (per day) : 30-36 h

Charging Time: 6-8 h

Luminous Efficacy: 160 lm/w

Battery Type: LiFePO4 230.4Wh 307.2Wh 499.5Wh

inquire

Features

High Performance

  • High-lumen LED chips provide 80° wide-angle illumination
  • Fully charges in 6–8 hours for 36 hours of lighting

Efficient Energy

  • High-quality mono-crystalline panel
  • Large-Capacity Battery with +66% Energy Boost
  • Smart Battery Protection

Durability & Realiable

  • Die-Cast Aluminum Housing
  • IP65 Waterproof & Dustproof
  • Certified to withstand 2400Pa wind load and 5400Pa snow load
  • Easy DIY Installation

SPECIFICATION

Model 0310 160lm/W 40W 60W 100W All In One Solar Street Light with 5050 LED Chips delivers super-bright, ultra-wide illumination with an 80° beam angle that easily covers 400 sq. ft., featuring a built-in high-capacity battery expandable to increase energy reserves by 66% for longer lifespan; fully charges in 6–8 hours of midday sun and provides up to 30–36 hours of continuous nighttime lighting to keep your perimeter safe.

Product Parameter
Model0310B40-110310C60-110310D100-11
LED Lamp5050 LED 6000K5050 LED 6000K5050 LED 6000K
Solar Panel16V 38W, Mono-Crystalline16V 48W, Mono-Crystalline16V 64W, Mono-Crystalline
Battery TypeLiFePO4 12.8V 18AhLiFePO4 12.8V 24AhLithium-Ion 11.1V 45Ah
Charging Time6-8 hours6-8 hours6-8 hours
Discharging Time30-36 hours30-36 hours30-36 hours
LED160 lm/W160 lm/W160 lm/W
MaterialDie-Casting AluminiumDie-Casting AluminiumDie-Casting Aluminium
Product Size740*340*82 mm860*340*82 mm980*360*125 mm
Install Height3-5m5-7m6-8m
Warranty3 years3 years3 years
Model 0310 160lm/W 40W 60W 100W All In One Solar Street Light with 5050 LED Chips

APPLICATIONS

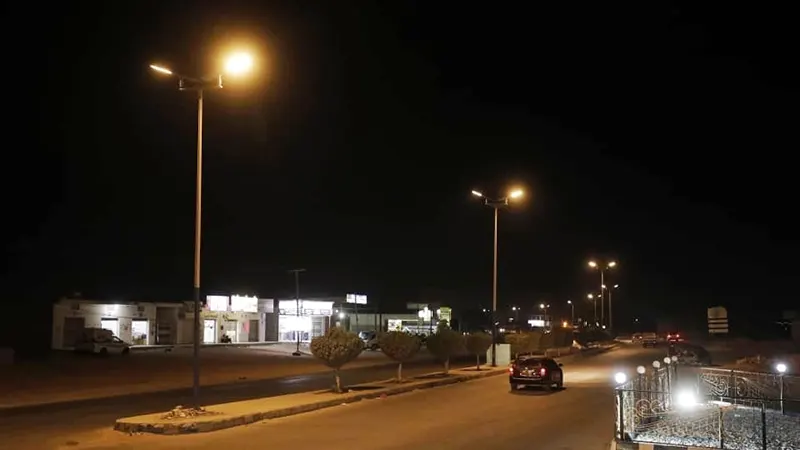

Model 0310 with 5050 LED Chips project in India
Model 0310 with 5050 LED Chips project in India

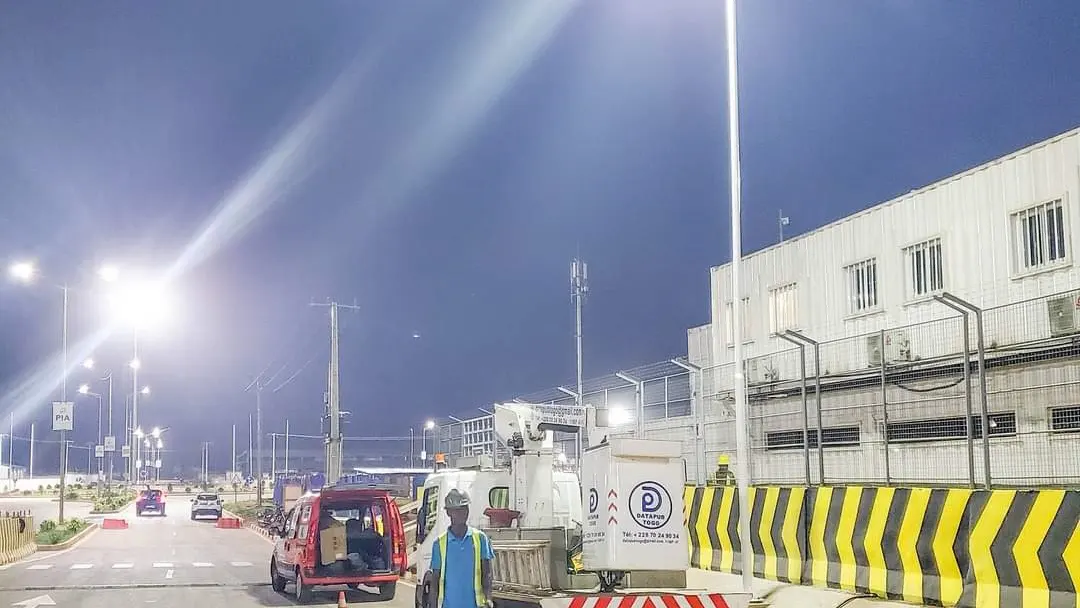

Model 0310 with 5050 LED Chips project in Vietnam
Model 0310 with 5050 LED Chips project in Vietnam
