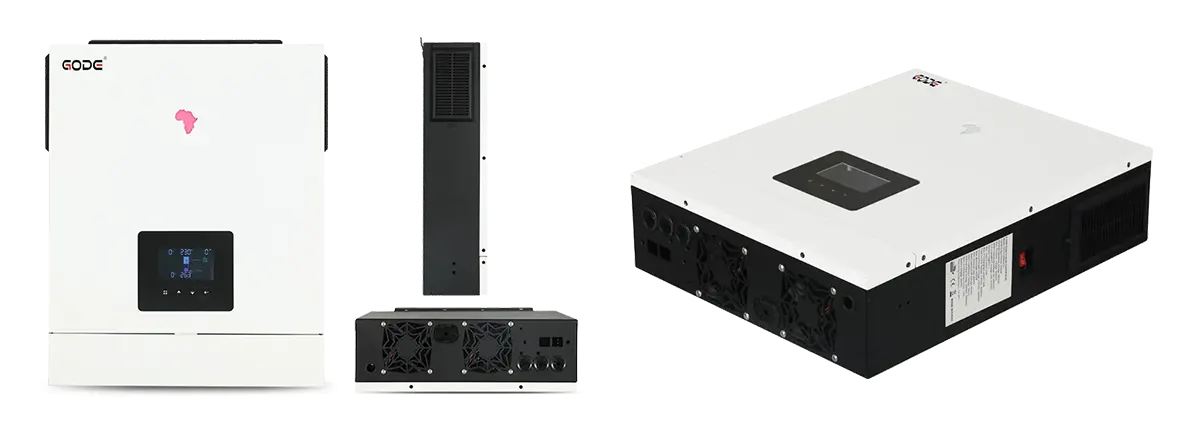

On/Off-grid Pure Sine Wave Solar Inverter Control All-in-one Machine 4.2~6.2kW

On/Off-grid Solar Inverter Control All-in-one Machine 4.2~6.2KW

Features

High Yields

  • Support dual PV input, dual MPPT voltage tracking.
  • DC/AC ratio up to 2.0.
  • Output power factor 1.0.

Leading Functions

  • UPS function, 10ms transition.
  • Pure sine wave solar inverter(on/off Grid).
  • WIF1&GPRS available forlOS and Android.

Safe & Reliable

  • Built-in bare metal server function.
  • Built-in anti-dust kit for harsh environment.

SPECIFICATION

GODE offers 4.2KW/6.2KW power Pure Sine Wave Inverter Control All-in-One with on/off-grid functionality, which combines the functions of an inverter, a solar charger and a battery charger to provide uninterrupted power support for home.

Product Parameter
ModelTHON-4.2KW-01THON-6.2KW-01
INVERTER CHARGER
model name4200KW6200KW
Operating Temperature Range-10~50℃-10~50℃
PV INPUT
Nominal Operating Voltage240VDC240VDC
Vmax PV500VDC500VDC
PV Input Voltage Range60-450VDC60-450VDC
Imax PV18A22A
Full Load MPPT Range240-450VDC240-450VDC
Maximum PV4200W6200W
Maximum Solar Charging Current120A120A
AC OUTPUT
Nominal Output Voltage220/230/240VAC220/230/240VAC
Nominal Output Current18.2A27.0A
Power Factor Rang＞0.99＞0.99
Maximum Conversion Efciency(DC/AC)97%97%
Nominal Operating Frequency50/60Hz50/60Hz
TWO LOAD OUTPUT POWER
Full Load4200W6200W
Maximum Main Load4200W6200W
Maximum Second Load1400W2066W
Main Load Cut Off Voltage26VDC52VDC
Main Load Retum Voltage27VDC54VDC
AC INPUT
Nominal operating voltage230VAC230VAC
Maximum input current30A40A
Nominal operating frequency50/60Hz50/60Hz
Surge power8400VA12400VA
Maximum AC Charging Current100A100A
BATTERY
Battery voltage24VDC48VDC
Maximum battery current175A125A
