Fishery-Solar Hybrid + Smart Aquaculture Project with 100MW PV and 12MW/48MWh Energy Storage in Hubei, China

Project Type: Floating Fishery-Solar Hybrid + Smart Aquaculture
Location: Jianli City, Hubei Province, China
PV Installed Capacity: 100 MW
Energy Storage Configuration: 12 MW / 48 MWh Liquid-Cooled ESS

Project Overview

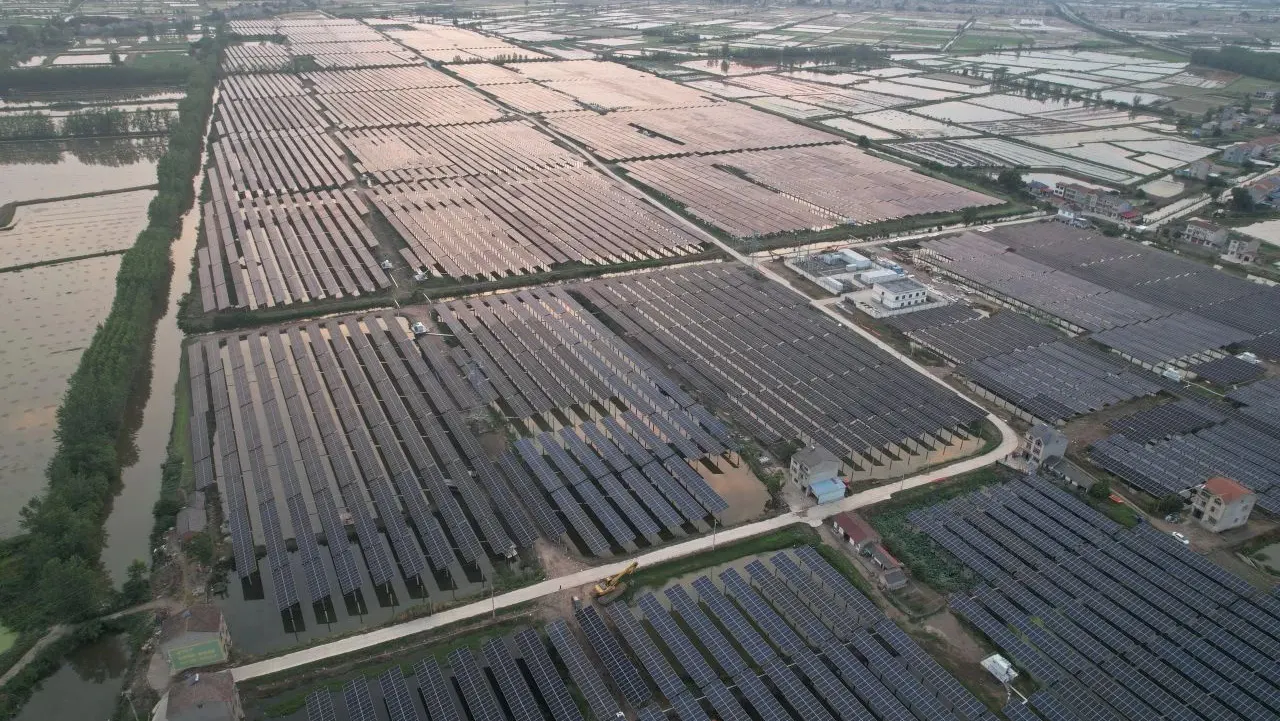

Located in the Modern Agricultural Demonstration Zone of Jianli City, Hubei Province, this 100MW floating solar project spans over 600 mu (≈40 hectares) of aquaculture water surface. Using a “fishery-solar hybrid” model, solar panels are deployed above the water to generate clean electricity while enabling aquaculture operations below—achieving efficient dual-purpose land use.

The project integrates a 12MW/48MWh liquid-cooled energy storage system, built on GODE’s flagship DQ1907D105K-01 Outdoor ESS Cabinet, which features a 241kWh LiFePO₄ battery, 105kW bidirectional PCS, and 100kW PV direct charging module. This enables real-time energy scheduling, peak shaving, and optimized energy use for both grid and aquaculture needs.

Technical Highlights

Liquid-Cooled Precision Storage System
Each ESS cabinet integrates a 241kWh LiFePO₄ battery, 105kW bidirectional PCS, and 100kW PV direct charging module. It features ±1°C precise liquid cooling and IP65 protection rating, ideal for humid and high-temperature aquaculture environments.

Smart BMS & EMS Collaborative Control
Utilizes a master-slave hierarchical battery management system integrated with a cloud-based EMS platform to optimize charge/discharge, monitor battery health, and provide early warnings for thermal runaway risks.

Optimized PV-Storage Dispatch
Supports direct PV charging during the day and steady discharge at night to power aquaculture operations, enhancing self-consumption and system stability.

High-Density, Quick Deployment
Cabinet-based design saves over 30% of land use. Modular structure supports batch deployment and flexible positioning along pond edges, access roads, and fishery banks.

Environmental & Economic Benefits

This project achieves high synergy between clean energy and ecological aquaculture. PV energy is consumed entirely on-site, increasing self-consumption ratio by over 25%. The integrated PV-storage system smooths grid load and improves dispatch flexibility. The energy storage system ensures stable night-time power supply for aerators and water quality control equipment, significantly improving aquaculture productivity and operational reliability.

• Annual electricity generation: ~130 million kWh
• Annual carbon emission reduction: ~96,000 tons
• Equivalent to planting: ~480,000 trees
• Annual revenue increase: Over 22%, through TOU price arbitrage, capacity charge optimization, and participation in ancillary service markets.

GODE is committed to becoming a global leader in “Smart Energy Storage + Zero-Carbon Solutions.” Through standardized, modular, and intelligent product design, GODE continuously drives the deep integration of energy storage systems across diverse application scenarios such as “Renewables + Agriculture,” “C&I Solar + Storage,” and “Microgrids + Rural Revitalization.”
