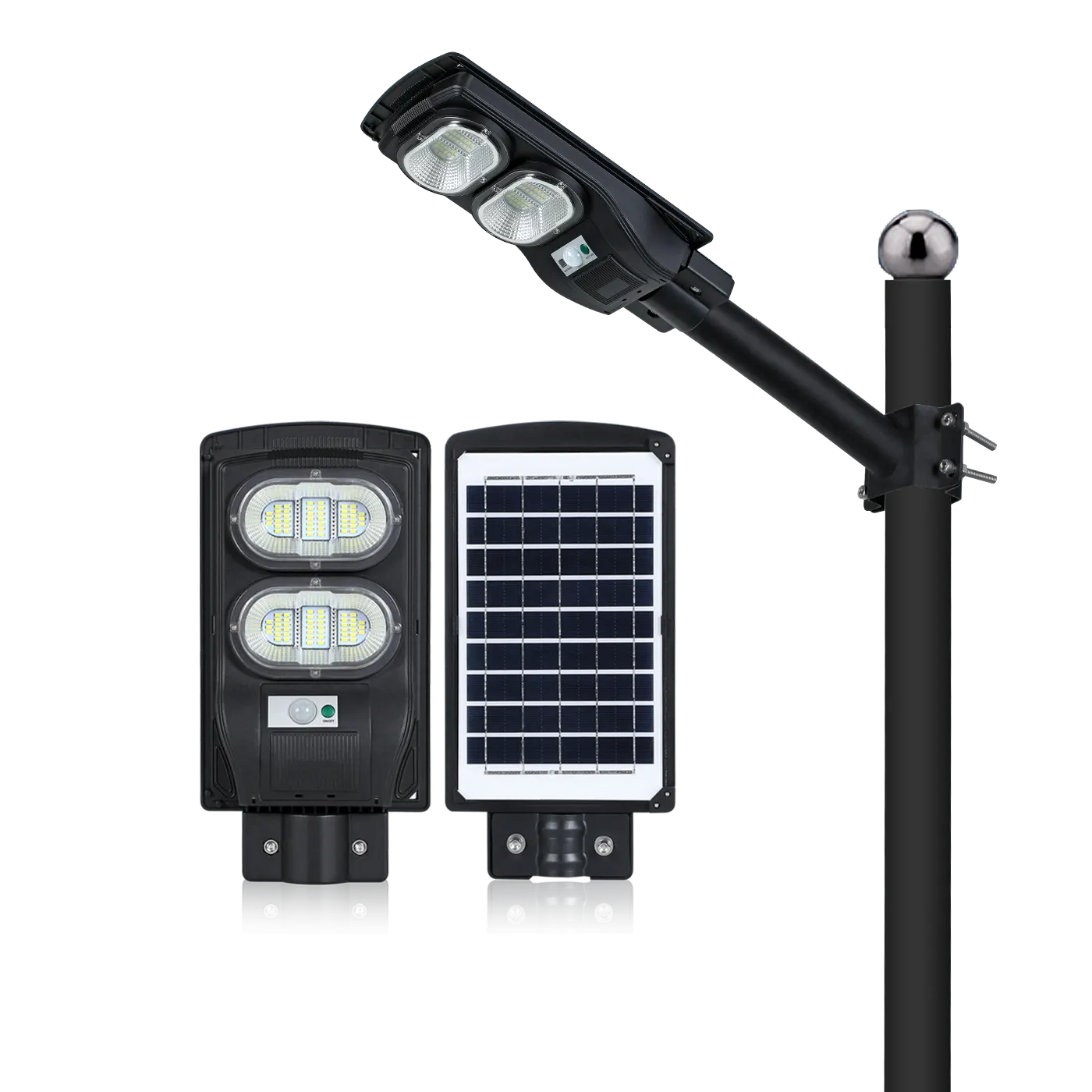

  • 0426B100-03 100W All-in-One Solar Street Light Product Overview

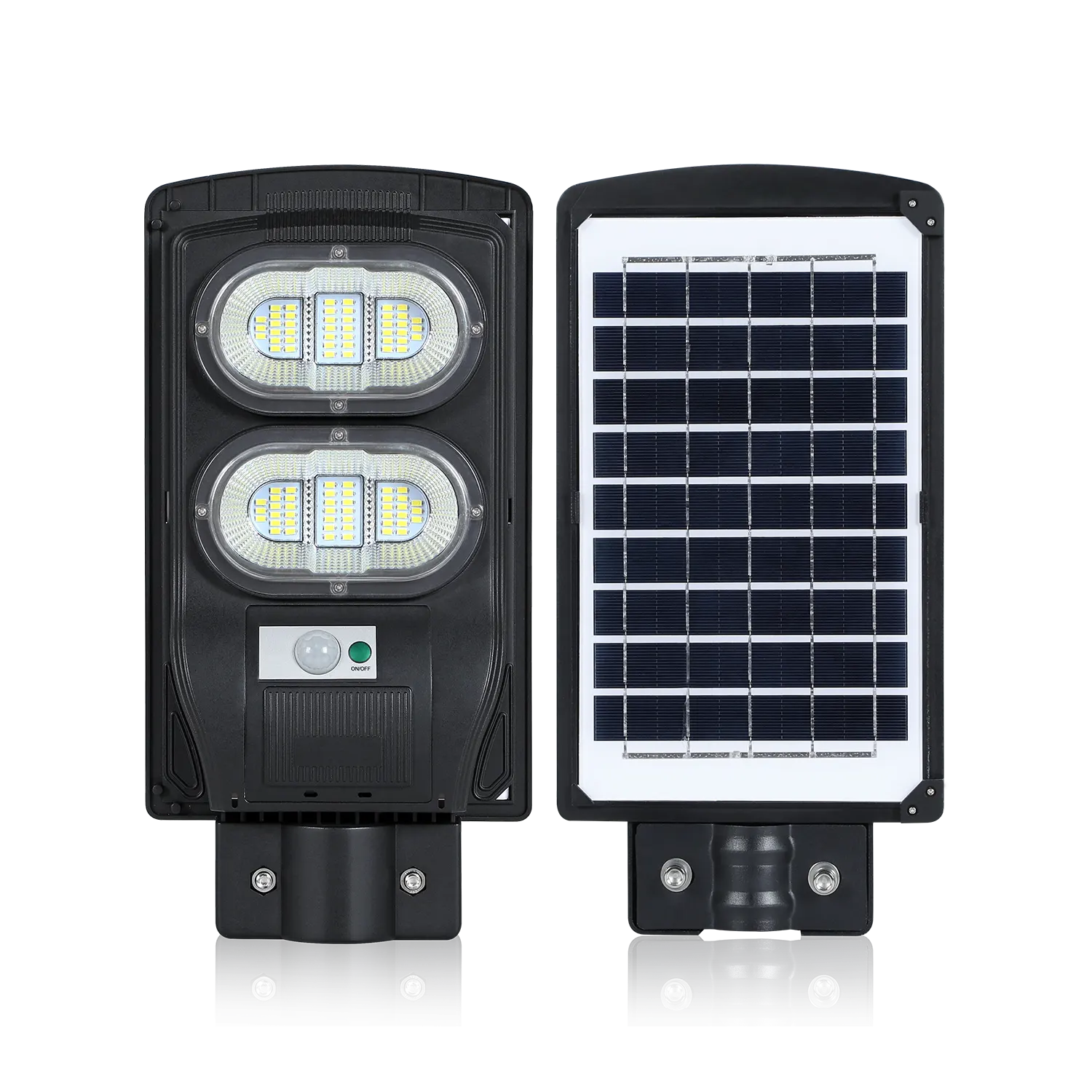

  • 0426B100-03 100W All-in-One Solar Street Light Lamp Body and Solar Panel Details
  • 0426 Series All-in-One Solar Street Lights Solar Module Details

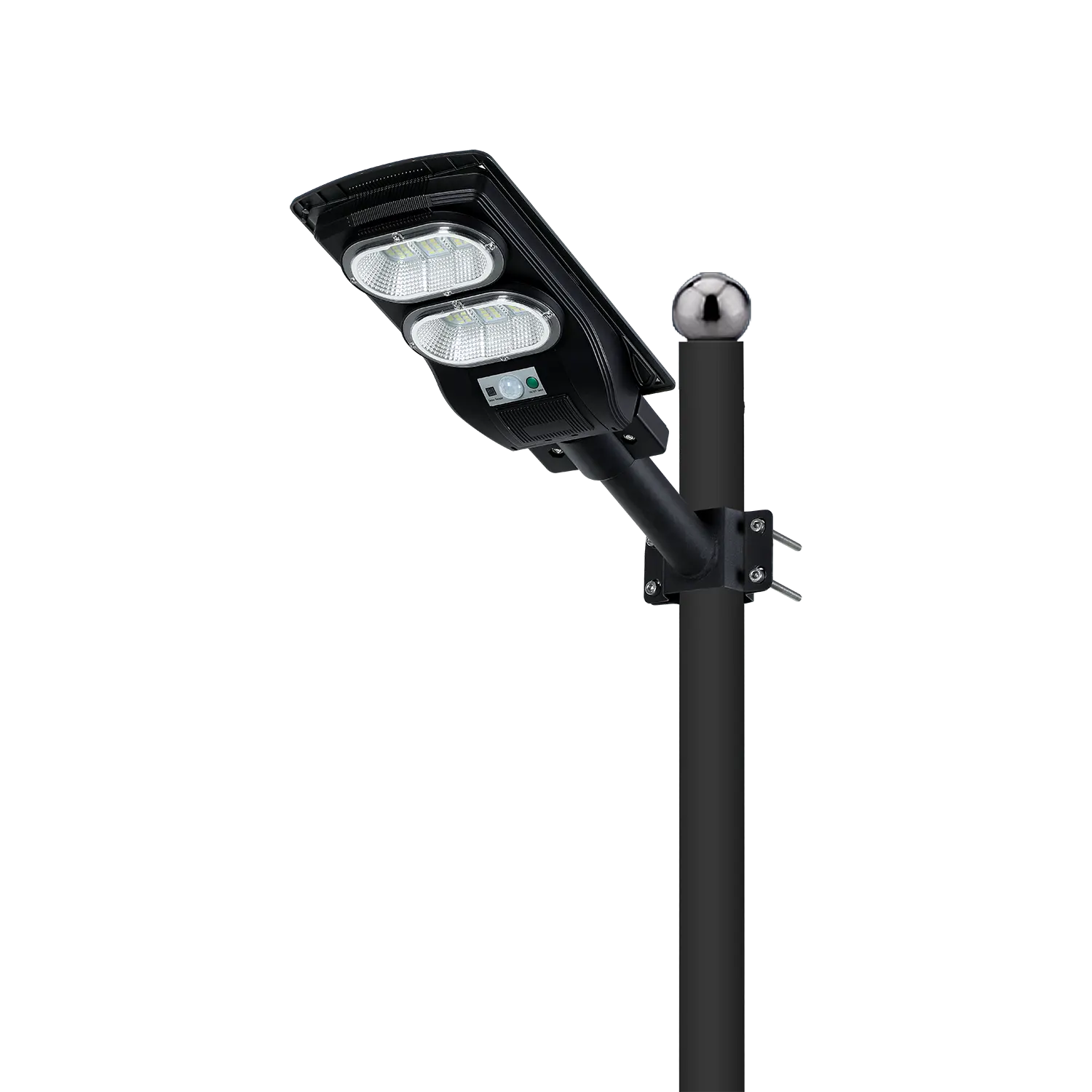

  • 0426B100-03 100W All-in-One Solar Street Light Pole-Mounted Installation View

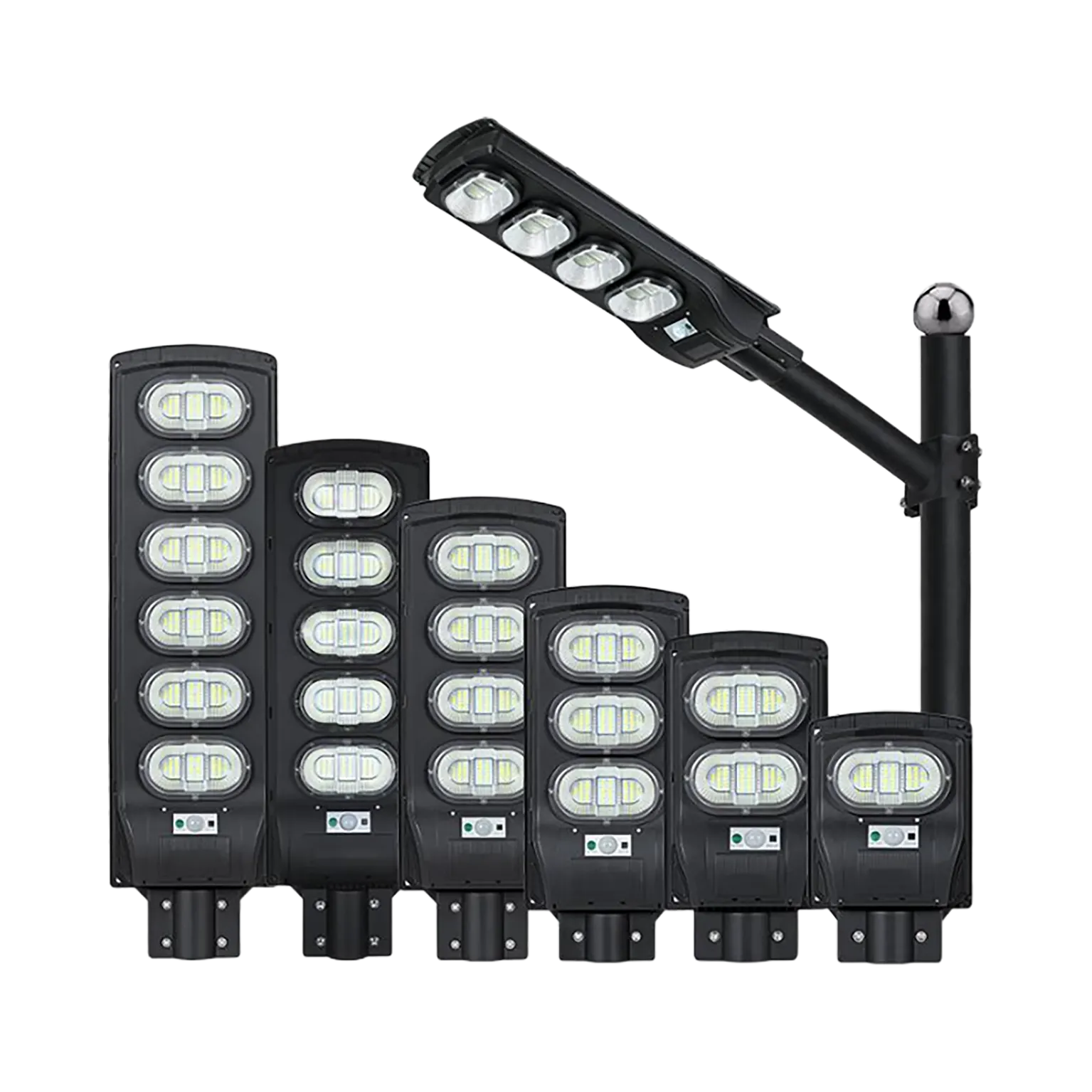

  • 0426 Series All-in-One Solar Street Lights Full Range Overview (6 Models)

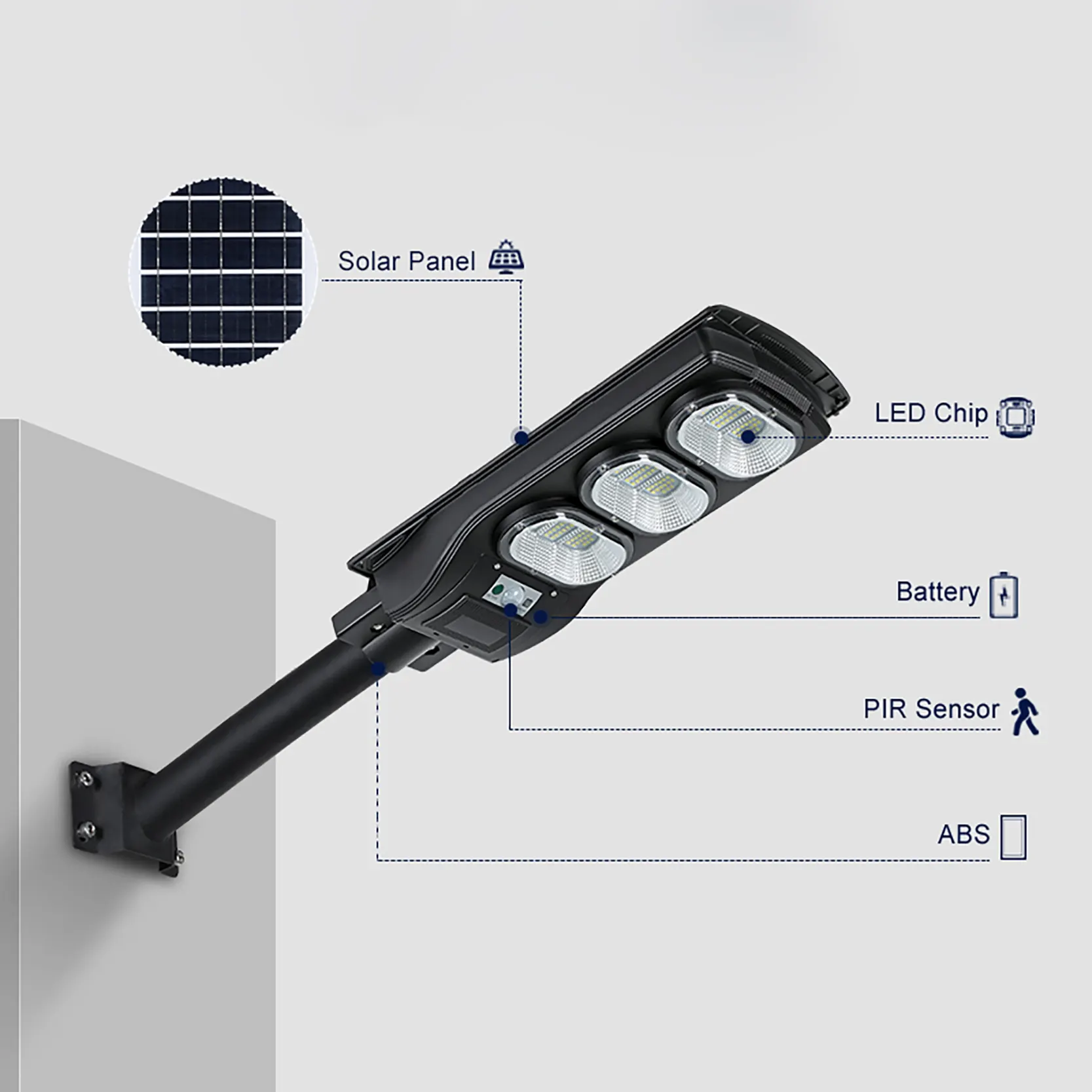

  • 0426 Series All-in-One Solar Street Lights Component Details

0426 Series Solar LED Street Light

Model: 0426

Next-Generation Integrated Solar Street Lighting Solution for Outdoor Environments



The 0426 series integrates optical design, energy storage systems, and intelligent control to deliver efficient and sustainable night-time lighting. The luminaire housing is made of high-strength ABS material, providing durability and long-term stable operation under harsh weather conditions. The LED module is equipped with high-brightness 2835 LEDs, ensuring high luminous efficiency and low heat output even during extended use. The luminaire follows a modular design concept, enabling fast installation and convenient maintenance, with key components replaceable without the need for additional tools.



The luminaire features a dedicated mounting interface on the top, allowing direct installation on poles, walls, or other supporting structures. The intelligent daylight sensor and motion sensing system ensure the light operates only when needed, thereby extending battery life and maximizing energy efficiency. The built-in LiFePO4 battery operates safely within a temperature range of –20°C to 65°C. Combined with a high-efficiency polycrystalline solar panel, the system enables fast charging during the day and long-duration power supply at night.

Features

High Yield

  • High luminous efficiency up to 160 lm/W
  • Large-capacity LiFePO4 battery
  • Multiple options from 50W to 300W

Smart & Intelligent

  • Supports daylight control and motion sensing
  • Built-in intelligent EMS
  • Auto-charge by day, auto-light by night

Durable & Reliable

  • High-strength ABS housing
  • IP65 dust and water protection
  • Wide operating temperature range from –20°C to 65°C
  • All-in-one design reduces installation and maintenance costs.

Specification

Optional configurations and extended features include multiple wattage options from 50W to 300W to suit different project requirements. The integrated all-in-one design supports both pole-mounted and wall-mounted installation without the need for trenching or external wiring. The system supports motion sensing and daylight control, with operating modes adjustable via remote control. OEM customization is available, including product branding and parameter configuration. The product is compliant with CE and RoHS certifications and meets relevant IEC standards for solar and LED lighting.

Product Parameter
Model0426A50-030426B100-030426C150-030426D200-030426E250-030426F300-03
LED Lamp2835 LED, 68 pcs, 3000–6000K2835 LED, 136 pcs, 3000–6000K2835 LED, 204 pcs, 3000–6000K2835 LED, 272 pcs, 3000–6000K2835 LED, 340 pcs, 3000–6000K2835 LED, 408 pcs, 3000–6000K
Rated Power50W100W150W200W250W300W
Solar Panel4.5V, 4.5W, Polycrystalline4.5V, 7W, Polycrystalline4.5V, 9W, Polycrystalline4.5V, 15W, Polycrystalline4.5V, 16W, Polycrystalline4.5V, 18W, Polycrystalline
Battery TypeLiFePO4, 3.2V, 5AhLiFePO4, 3.2V, 6AhLiFePO4, 3.2V, 10AhLiFePO4, 3.2V, 12AhLiFePO4, 3.2V, 15AhLiFePO4, 3.2V, 18Ah
Charging Time6–8 hours6–8 hours6–8 hours6–8 hours6–8 hours6–8 hours
Discharging Time12–15 hours12–15 hours12–15 hours12–15 hours12–15 hours12–15 hours
Luminous Efficiency160 lm/W160 lm/W160 lm/W160 lm/W160 lm/W160 lm/W
MaterialABSABSABSABSABSABS
IP RateIP65IP65IP65IP65IP65IP65
Product Size292 × 195 × 64 mm (L × W × H)384 × 190 × 64 mm (L × W × H)478 × 211 × 71 mm (L × W × H)624 × 225 × 71 mm (L × W × H)704 × 226 × 72 mm (L × W × H)785 × 226 × 72 mm (L × W × H)
Recommended Installation Height3–4 m4-5 m5-6 m6-7 m7-8 m8-9 m
Warranty3 years3 years3 years3 years3 years3 years
Datasheet
